WG-90M Excavation-to-Anchor Drilling Rig

2025,09,12

Product Overview

The WG-90M is a flexible, high-performance Excavator Converted Drilling Rig. It works for modern construction, mining, and renewable energy projects.

This rig turns standard excavators into powerful drilling machines. That means more flexibility and lower costs for your jobs.

As a top Drilling Rig From Excavator, it uses the excavator’s mobility and stability. It works well even in tough terrain – great for anchoring, slope stabilization, or solar bracket installation.

Technical Specifications

Drilling diameter: 100-300mm
Max drilling depth: 20m
Power source: Fits 20-30 ton excavators (hydraulic drive)
Drilling speed: 0-60rpm (adjustable)
Weight: About 2,800kg
Size: 3,200 × 1,200 × 1,800mm
Hydraulic pressure: 16-25MPa
Rotation torque: 9,000N·m
Recommended excavators: 20t-30t class (universal connector)

Product Images

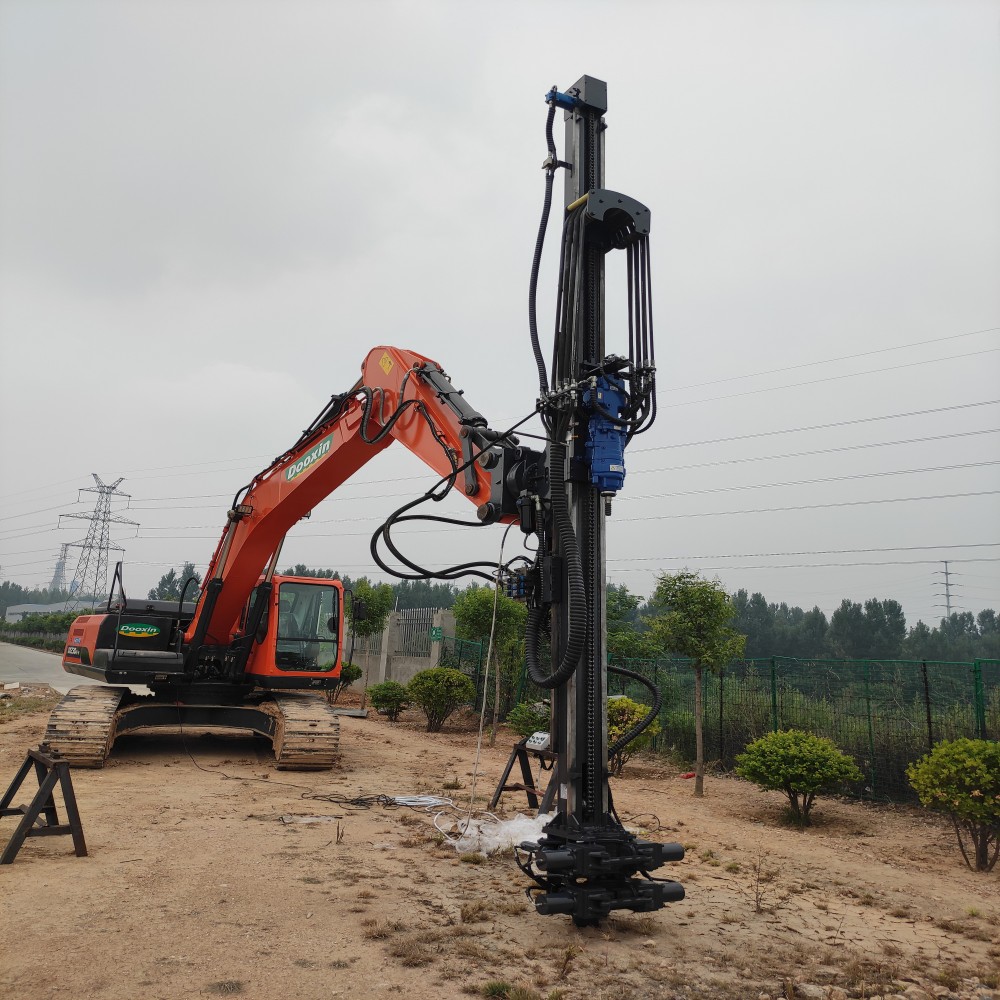

Take a look at the WG-90M from different angles – see its strong design and key parts:

Close-up of WG-90M’s drilling head and hydraulic parts

Want to see it work? Ask us for demo videos – they show the rig in real jobs.

Product Features & Advantages

Excavator fit: It’s a great Excavator Converted To Drilling Machine. It works with most 20-30 ton excavators. No need to buy separate drilling gear – save money.
Fast drilling: It has a strong hydraulic system and optimized drilling head. Drills faster even in hard rock or compacted soil.
Tough build: Made with heavy-duty steel. Wear-resistant parts mean it lasts long – even in harsh work sites.
Easy to move: Turns 360 degrees. Adjust drilling angle (0-90°) – works in tight spaces or tricky terrain.
Quick to set up: Connects fast. Turn your excavator into a drill in less than 30 minutes – less downtime.
Saves fuel: Smart hydraulic control. Uses up to 15% less fuel than old-style Drilling Rigs.

How to Use the WG-90M

Get ready: Park the excavator on flat ground. Turn off the engine. Check all hydraulic hoses for damage.
Mount the rig: Attach the WG-90M to the excavator’s arm with the quick connector. Lock all pins and connect hydraulics.
Test it: Hook up hydraulic hoses to the excavator. Turn on the excavator and test the hydraulic functions.
Start drilling: Position the drilling head where you need it. Adjust the angle. Start drilling slow – speed up based on soil.
Finish up: When you reach the right depth, pull the drill bit back slowly. Turn off hydraulics before disconnecting parts.
Maintain it: Clean the drilling head after each use. Check for wear. Lubricate moving parts weekly. Inspect hoses monthly.

Where to Use It

The WG-90M works in many industries – here are common uses:

Solar projects: Perfect as a Photovoltaic Drilling Rig. Installs ground-mounted solar panel foundations accurately.
Construction: Good for foundation anchoring, retaining walls, and small pile drilling in building jobs.
Mining: Works for exploration drilling, blast holes, and slope stabilization in mines.
Geotech jobs: Great for soil sampling, ground improvement, and preventing landslides.
Road/rail projects: Drills bridge foundations and stabilizes embankments.

What It Does for You

Cut costs: No need to buy separate drilling equipment. Convert your existing excavator. Saves 40-60% on capital costs.
Get more done: Faster drilling and easy movement. Cuts project time by up to 25%.
Use it for more jobs: One machine handles multiple tasks. Gets more use out of your equipment – better ROI.
Lower maintenance costs: Simple design with fewer moving parts. Less to fix – saves money on upkeep.
Safer to use: Has safety features – overload protection and emergency stop. Keeps operators safe.
Reach tough spots: Uses the excavator’s mobility. Gets to remote or hard-to-reach job sites.

Certifications & Standards

The WG-90M meets international quality and safety rules, including:

ISO 9001:2015 Quality Certification
CE Certification (for Europe)
SGS Performance & Safety Check
OSHA Safety Standards (for construction gear)

Custom Options

We can tweak the rig to fit your specific project needs:

Custom drilling head sizes (80-400mm) for special jobs
Longer drilling depth (up to 30m) for deep foundations
Adapter kits for non-standard excavators
Special drill bits for different soils (rock, clay, sand)
Remote control for dangerous work areas

How We Make It

We follow strict steps to make sure the rig is high-quality:

Pick materials: Use high-strength alloy steel and top hydraulic parts from trusted suppliers.
Precision machining: CNC machines make parts accurate – within 0.02mm.
Put it together: Skilled workers assemble each unit. Follow strict quality rules.
Test it: Every rig runs for 50 hours straight. Test under different loads to check performance.
Final check: Independent auditors inspect before packing and shipping.

What Customers Say

"The WG-90M turned our excavator into a multi-use machine. We finished three solar projects 30% faster than with our old drilling gear."

— John Smith, Project Manager, SolarTech Construction (USA)

"We work in remote mines. This rig’s mobility is a game-changer. We cut transportation costs a lot."

— Maria Garcia, Operations Director, Andes Mining Group (Chile)

"It’s built tough. We’ve used it heavily for 18 months – barely any downtime. ANNENG’s after-sales support is great too."

— David Wang, CEO, Eastern Foundations (Singapore)

Common Questions

Q: Which excavators work with the WG-90M?

A: It fits 20-30 ton excavators from big brands – Caterpillar, Komatsu, Volvo, Sany. We can make custom adapters for other models too.

Q: How long to convert an excavator to this rig?

A: If you know how, it takes 20-30 minutes with the quick connector.

Q: What maintenance does it need?

A: Clean it daily. Lubricate moving parts weekly. Check hydraulic fluid monthly. Inspect drill bits and hoses every 3 months.

Q: Does it have a warranty?

A: Yes – 12 months on all parts (except wear items like drill bits or seals). We also offer extended warranties if you want.

Q: Can it drill underwater?

A: We have a waterproof kit for shallow water (up to 3m deep). Ask our sales team for details.

Q: How is it shipped?

A: It comes disassembled in a wooden crate. Shipping size: 3.5m × 1.5m × 2.0m. Gross weight: 3,200kg.
