ANNENG WGQK-180D – One Rig for Digging and Drilling, Perfect for Slopes and Mines

What is this rig, exactly?

Tired of switching between excavators and drills all day? The ANNENG WGQK-180D fixes that. It’s a crane-modified slope drill that turns your regular excavator into a two-in-one workhorse.

It’s built for tough jobs: stabilizing slopes, prepping mine sites, digging foundations. It’s strong enough to excavate and precise enough to drill – and it plays nice with our Hydraulic Rock Splitter For Mining and Ultra-high Pressure Rock Splitter. Together, they make a complete rock-breaking system that saves time and cuts costs.

Steep slopes, mining sites, road work – it handles all of them. No more cluttering your worksite with extra machines.

The specs that matter

• Model: WGQK-180D
• Drilling Diameter: 80-180 mm
• Max Drilling Depth: 6 meters
• Working Pressure: 18-25 MPa
• Power Source: Your excavator’s hydraulics
• Rotation Speed: 0-80 rpm
• Weight: 1,200 kg
• Drill Angle Range: 0-90 degrees
• Works With: Hydraulic Rock Splitting Tool, Air Compressor

Pictures and videos

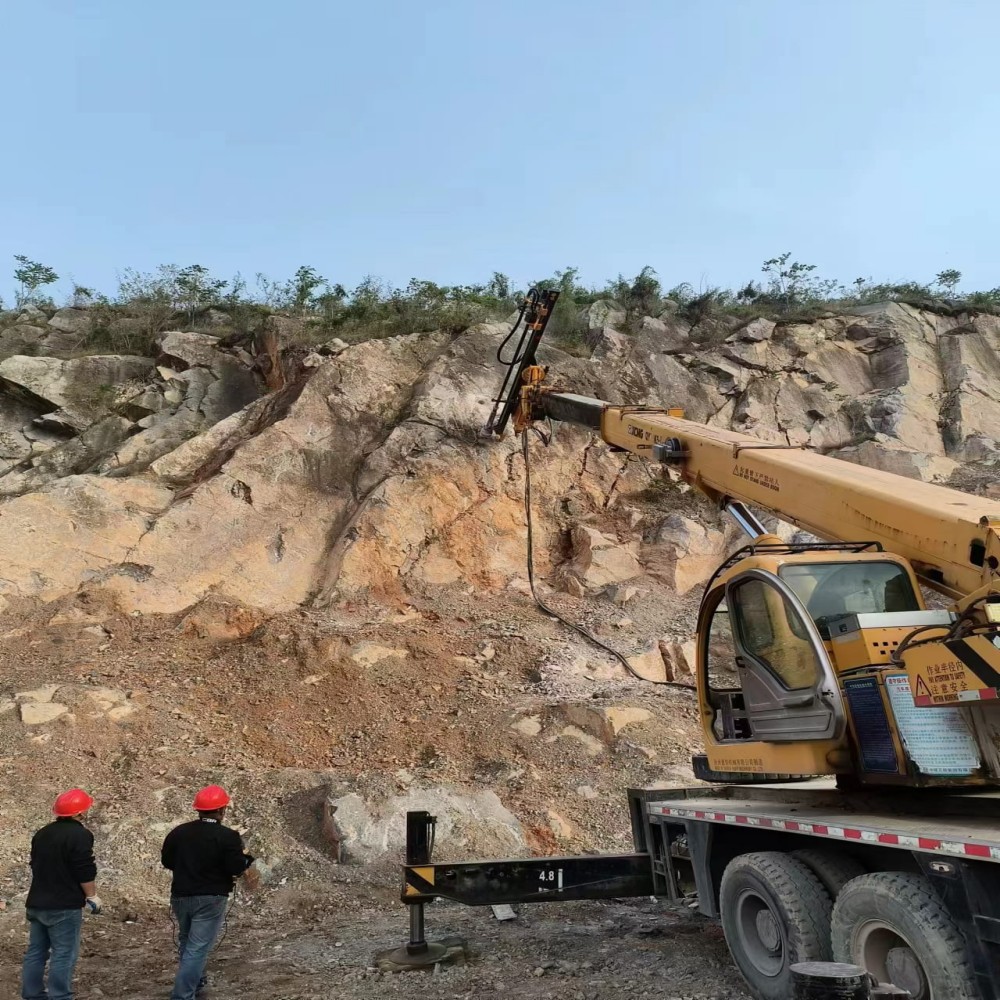

Here’s the WGQK-180D in action. You can see how it’s built, how it drills, and how it handles slopes. Want to see it working with our Rock Splitter Machine? Just ask – we’ll send you demo videos.

What makes this rig better than others?

1. It turns one machine into two

Your excavator becomes a dedicated drill rig. No need to buy a separate drill – saves you about 50% compared to getting a whole new machine.

2. The key perks

• Drills at any angle: 0-90 degrees means you can work on flat ground, steep slopes, even vertical walls – perfect for reinforcing slopes.
• Strong but precise: 18-25 MPa pressure handles hard rock, and you can adjust the speed (0-80 rpm) for accuracy.
• Tough build: Drill head and hydraulics are made with high-strength steel. They hold up to dust and rust, even in mines.
• Easy to set up: Attaches to most 18-30 ton excavators in under 2 hours. Your crew can do it on-site – no pros needed.
• Works with our splitters: Pairs smoothly with ANNENG’s Ultra-High Pressure Rock Splitter and Hydraulic Rock Splitting Tool for a full drill-and-split workflow.

How to set it up and use it

1. Get your excavator ready:
   • Make sure it’s 18-30 tons (check our list for specific models).
   • Look over hydraulic hoses for damage. Replace any that are bad.
2. Attach the rig:
   • Use the included brackets to bolt the rig to the excavator arm.
   • Connect hydraulic lines to the excavator. Tighten all the fittings.
3. Adjust settings:
   • Set the drill angle (0-90 degrees) with the hydraulic lever.
   • Pick rotation speed based on rock hardness – slower for hard rock, faster for soft.
4. Start drilling:
   • Line up the drill head where you need it. Lower it gently to touch the rock.
   • Start rotation and apply steady pressure. Let the drill do the work – don’t force it.
   • For deep holes, pull the drill out now and then to clear dust (use an air compressor if you have one).
5. Switch to splitting (if you need to): Once holes are drilled, take off the rig and hook up your Hydraulic Rock Splitter For Mining to finish the job.

Where can you use it?

The WGQK-180D is built for rough conditions. Here’s where it works best:

• Slope stabilization: Drills anchor holes on steep slopes to reinforce them. Great for highway banks and mountain roads.
• Mining prep: Makes precise pre-split holes for our Hydraulic Rock Splitter For Mining. Cuts down on the need for blasting in mines.
• Foundation work: Drills deep holes for building foundations, bridge piers, and retaining walls. Handles hard soil and rock easily.
• Quarry work: Preps rock faces for splitting with the Ultra-High Pressure Rock Splitter. Makes stone extraction faster.
• Disaster prevention: Drills drainage holes in landslide-prone areas. Helps keep soil stable and prevents erosion.

What’s in it for you?

• Spend less on equipment: Your excavator becomes a drill rig – no need for a separate machine. Saves 50% compared to buying a dedicated drill.
• Finish jobs faster: One machine does both excavating and drilling. Less time swapping equipment – projects wrap up 30% quicker.
• Need fewer workers: Your existing excavator crew can run it. No need to hire specialized drill operators – saves on training and wages.
• More precise work: Controlled drilling means holes are exactly where you need them. Pairs perfectly with our Rock Splitter Machine for cleaner splits and less waste.
• Tough enough for daily use: Built to handle dust, vibration, and heavy work. Fewer breakdowns mean more time working, less time fixing.

Certifications you can trust

ANNENG stands behind quality and safety. The WGQK-180D meets these international standards:

• CE Certification: Passed EU safety and performance tests. Good to use in European markets.
• ISO 9001: Made under strict quality control. Every rig gets tested before shipping.
• ISO 14001: Produced with eco-friendly processes. Keeps environmental impact low.
• OSHA Compliant: Meets U.S. safety standards for construction and mining gear.

We can customize it for your needs

Every job is different. We’ll tweak the rig to fit what you need:

• Drill head sizes: Custom bits for diameters outside 80-180 mm (we can do 50-250 mm).
• Mounting brackets: Modified brackets for non-standard excavators (send us your specs – we’ll make it fit).
• Deeper drilling: Extra parts to reach 10+ meters for deep foundation work.
• Dust collection: Add-on vacuum to keep worksites cleaner (good for cities or sensitive areas).

Tell our sales team what you need – we’ll have a custom solution ready in 5 business days.

How we build it

We care about quality. Here’s how we make the WGQK-180D:

1. Choosing materials: We use high-strength alloy steel for the drill head and frame. We test it for hardness and durability – 10% of materials get rejected for not meeting our standards.
2. Precision machining: CNC machines shape key parts (within ±0.02 mm). Makes sure everything fits and works smoothly.
3. Putting it together: Skilled techs build each rig by hand. Hydraulic lines get pressure-tested to 30 MPa to check for leaks.
4. Testing performance: Every rig drills 50 test holes in granite to check power and accuracy. We look for vibration, noise, and overheating.
5. Checking certifications: We make sure it meets CE, ISO, and OSHA standards. All paperwork comes with your order.
6. Packaging: Shipped in heavy-duty crates with foam padding. Protects it during transport – even long trips.

What our customers say

Common questions

• Q: Will this fit my excavator?
  A: It works with most 18-30 ton excavators. Send us your make and model – we’ll check. If not, we can make custom brackets.
• Q: How long to switch from excavating to drilling?
  A: Your crew can attach the rig in under 2 hours. Once set up, switching modes takes minutes with the hydraulic controls.
• Q: What maintenance does it need?
  A: Check hydraulic hoses daily for leaks. Lubricate the drill head every 10 hours. Change hydraulic oil every 500 hours. We include a detailed schedule with every rig.
• Q: Can it drill through hard rock like granite?
  A: Yep. With the right drill bit (included), it handles granite, basalt, all the tough stuff. Pair it with our Rock Splitter Machine for the full process.
• Q: What’s the warranty?
  A: 1 year on the frame and structural parts, 6 months on hydraulic components. We offer extended warranties for extra. Our global service team can fix or replace parts fast.
