360 Degree Rotating blast Drill Rig for Mining

Product Overview

As a key component of our Drilling And Splitting Machines ecosystem, it integrates seamlessly with other ANNENG equipment. Pair it with an Excavator Converted Drilling Rig for pre-blast exploration, use this 360° rig for blast hole drilling, then complete the process with our Mining Rock Splitters for efficient rock fragmentation. A gold mine in South Africa reported a 38% reduction in their "drill-blast-split" cycle after implementing this integrated workflow.

Built to withstand extreme conditions, this drill rig has been tested in 52°C desert open-pit mines and -15°C underground tunnels, operating reliably through 12-hour shifts without performance issues.

Technical Specifications

• Brand: ANNENG – 15 years of designing mining equipment, tested in 20+ countries
• Power Source: 160kW diesel engine
• Weight: 18.5ton
• Drilling Speed: 0.8-1.2m/min
• Protection Level: IP67

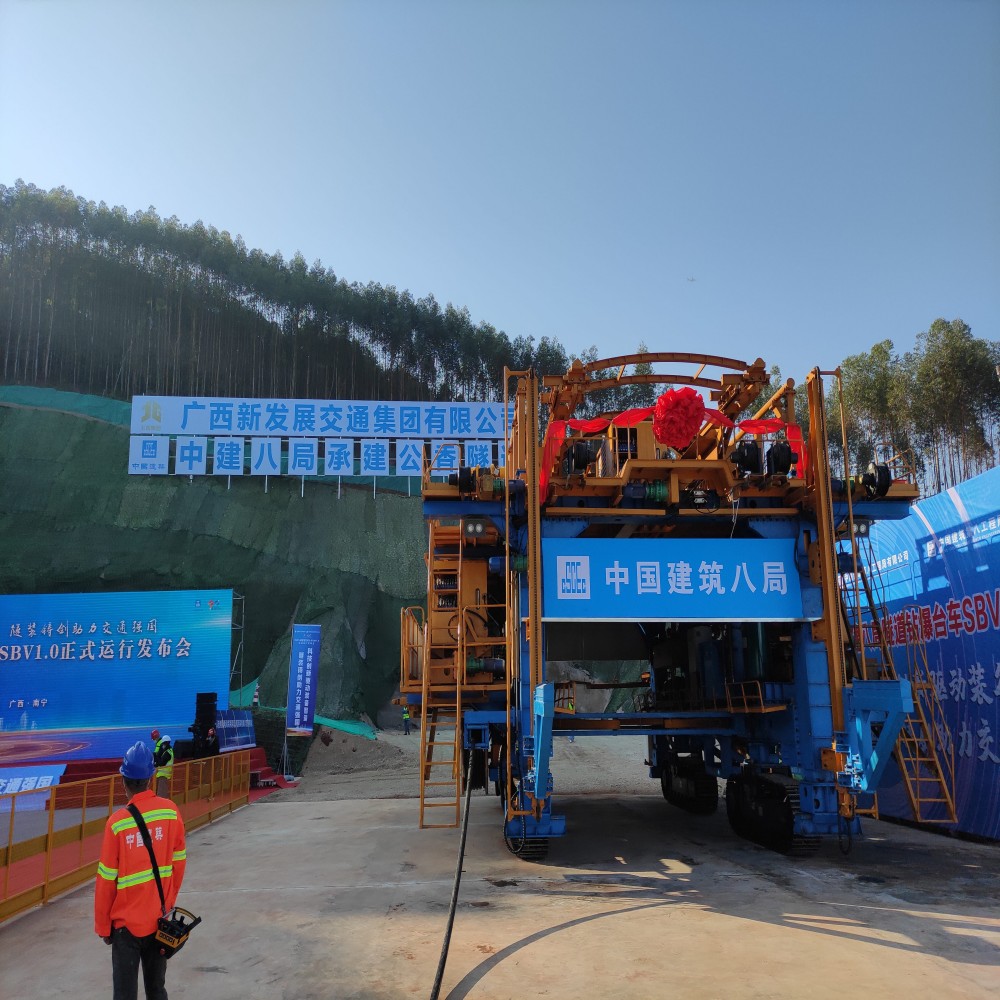

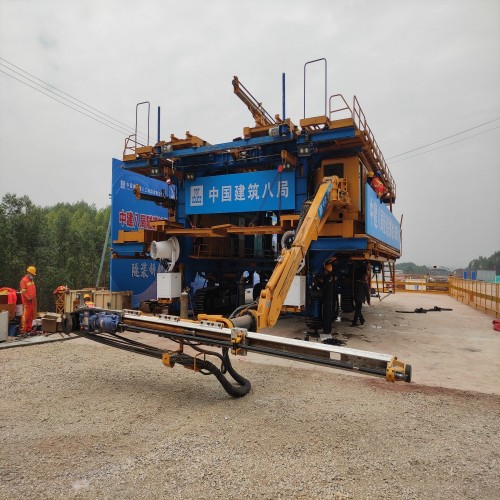

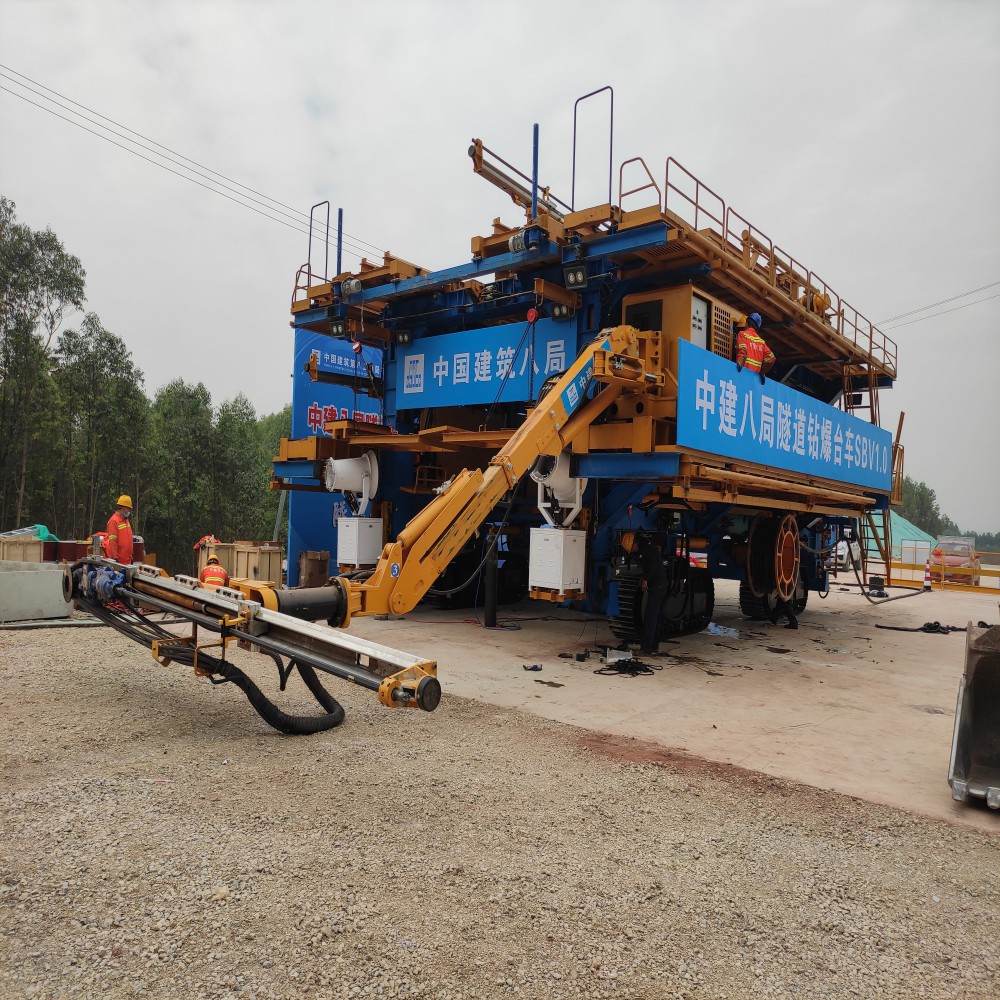

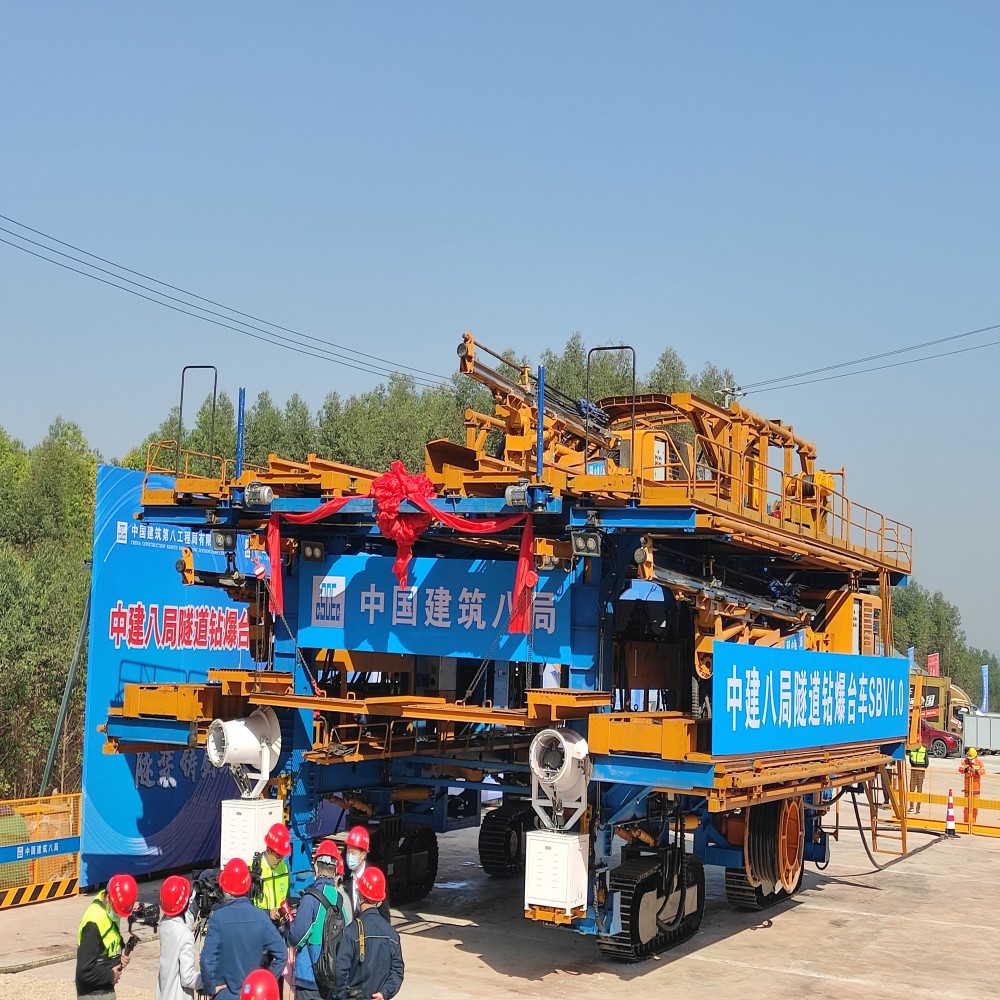

Product Images

Product Features & Advantages

• 360° Rotation: Reposition in 30 seconds instead of 20 minutes.
• System Compatibility: Works seamlessly with our Drilling And Splitting Machines - no adapters needed for complete workflow.
• Precision Drilling: Digital angle control (±0.5°) ensures uniform blast holes - mines report 15% less explosives usage per ton of ore.

Operating Steps

1. Site Preparation: Clear debris and mark blast hole positions based on mining plans. Ensure stable ground for the rig.
2. Position the Rig: Drive to first drilling position and use stabilizers to level the machine on uneven terrain.
3. Set Drilling Parameters: Input hole depth and diameter into digital control panel.
4. Start Drilling: Engage drill head. Automatic feed system maintains consistent pressure while operator monitors progress.
5. Move to Next Hole: Retract drill head, rotate rig to next position (no need to reposition entire machine) and repeat.

Application Scenarios

• Underground Mining: Perfect for narrow-vein gold and silver mines. Compact design works in tunnels as narrow as 3 meters.
• Aggregates Quarrying: Essential for limestone and granite quarries producing construction aggregates.
• Civil Engineering: Used in large-scale construction projects for rock excavation—highways, dams, and infrastructure.

Customer Benefits

• Faster Operations: 360° rotation
• Lower Costs: Reduce explosives usage by 15%
• Improved Safety: Explosion-proof design, emergency stops, and reduced operator exposure to dust and vibration.

Certifications & Compliance

• ISO 9001:2015 Quality Management
• MSHA Compliance (U.S. Mine Safety)
• Australian AS 4024 Pressure Equipment
• ATEX Certified for Explosive Environments
