CYLJ-45A mining wheel hydraulic drilling rig for sale

The mining wheel Drilling Rig is slow and unable to move? ANNENG CYLJ-45A is highly efficient and flexible

Directly addressing industry pain points: Ordinary Drilling Rigs are cumbersome for moving in mining operations and require a lot of effort for relocation; they have low efficiency in drilling hard rocks and frequently get stuck; they have poor compatibility with Hydraulic Mining Drilling Rigs, resulting in interrupted process connections. These problems prolong the construction period and increase operating costs. ANNENG's CYLJ-45A mining wheel hydraulic drilling rig for sale precisely solves these issues. With its wheel-based flexible movement, powerful hydraulic system, and high compatibility design, it is more suitable for various mining scenarios compared to ordinary Hydraulic Mining Drilling Rigs, enabling faster drilling, smoother relocation, and smoother coordination, thus reducing costs and increasing efficiency.

Product Description

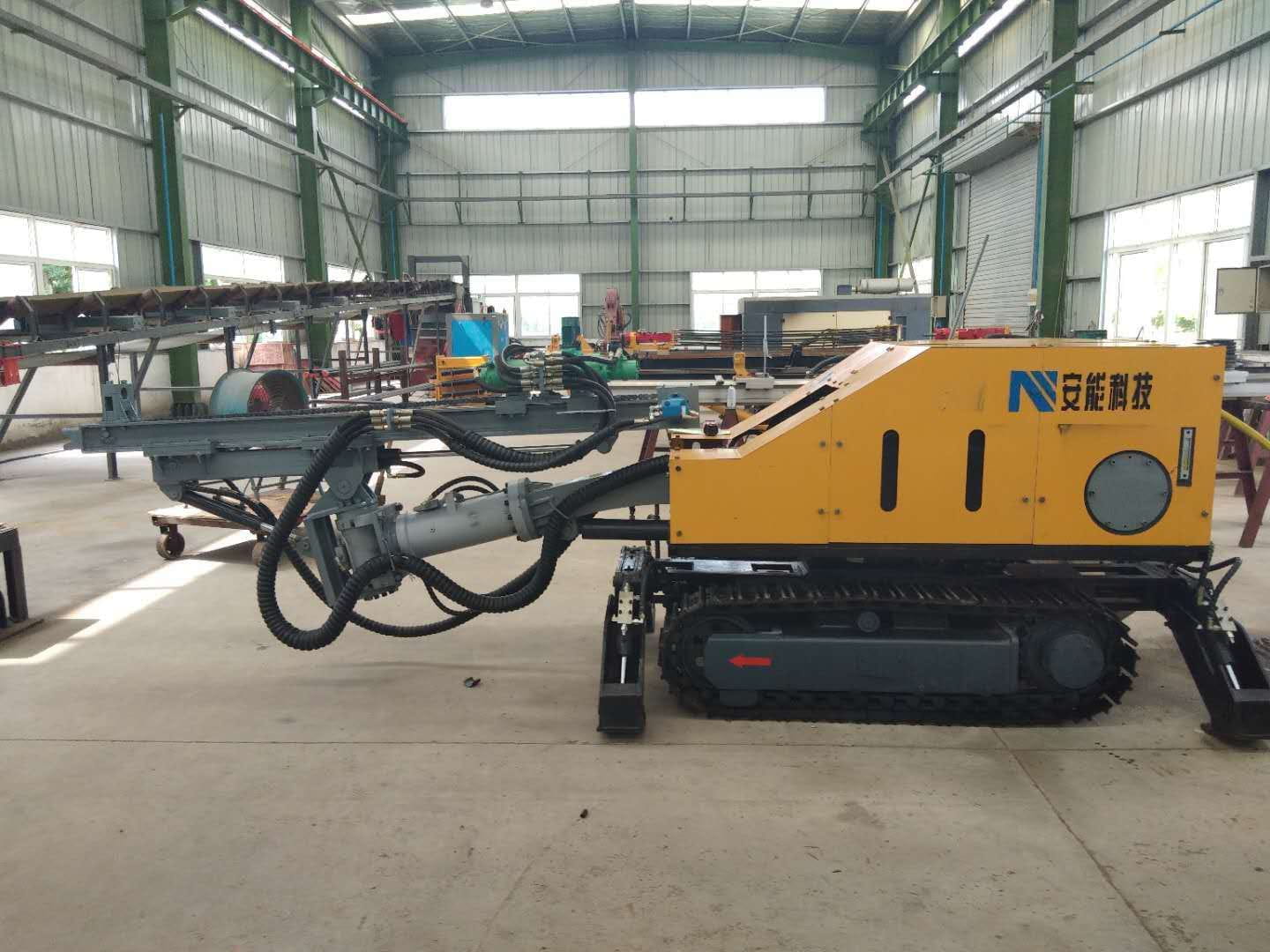

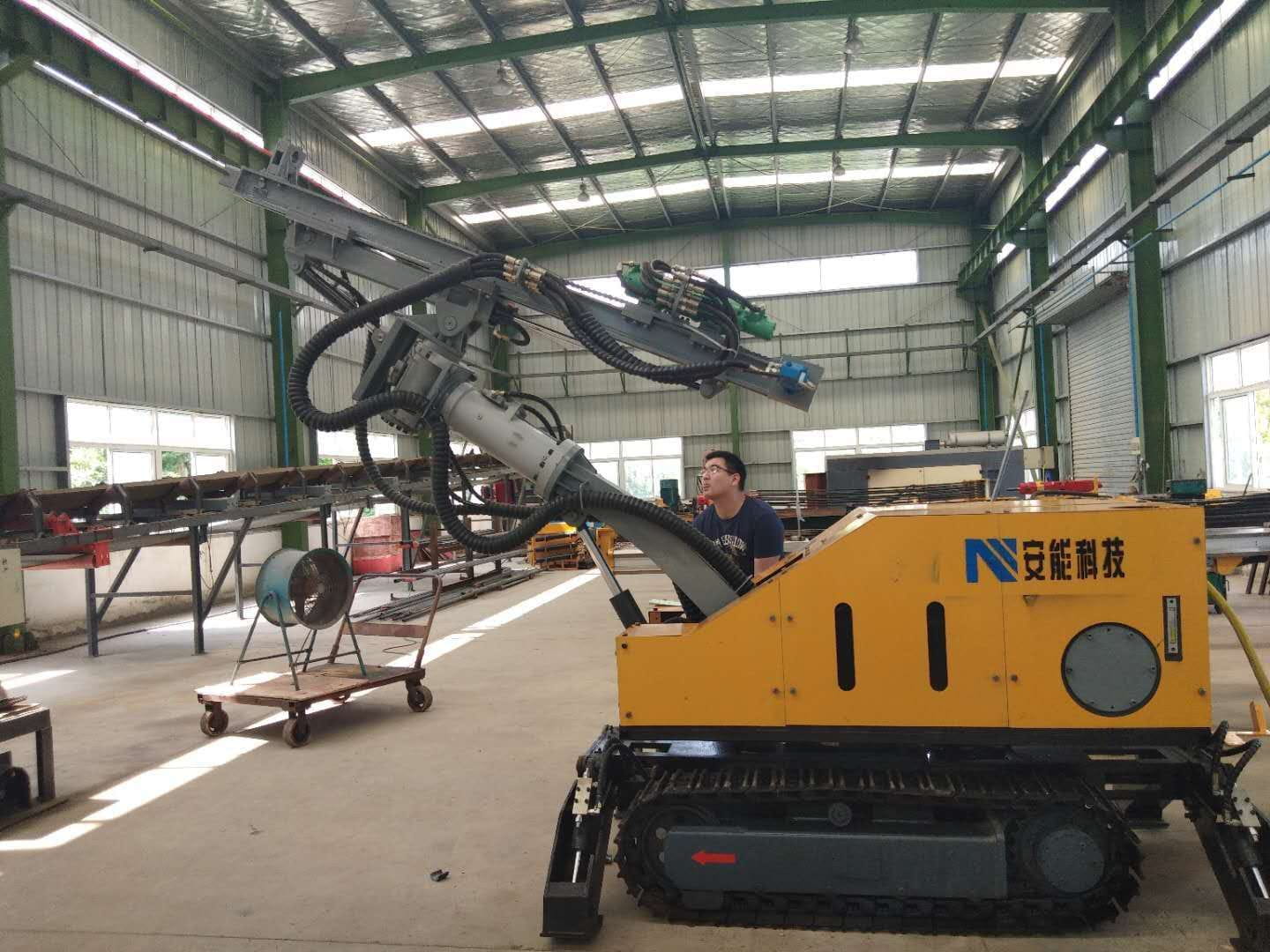

The ANNENG CYLJ-45A is a wheeled hydraulic drilling rig specifically designed for mining operations. It features a wheeled chassis design, allowing for flexible movement. Transferring between sites does not require additional lifting equipment, and it can easily navigate through complex mining terrains. Equipped with a high-power hydraulic drive system, it offers strong and stable power output, optimized for hard rock strata in mines, and the drilling efficiency is over 35% higher than that of traditional drilling rigs. Unlike the water extraction purpose of the Hydraulic Well Drilling Rig or the lightweight operation positioning of the Small Remote Control Drilling Rig, it focuses on core needs such as blasting holes, exploration holes, and support holes in mines. It can seamlessly collaborate with the Hydraulic Mining Drilling Rig to complete the continuous process from drilling to mining. The equipment is equipped with an intelligent drilling pressure adjustment system, which automatically adjusts parameters when encountering hard rock, reducing the risk of sticking, and the operation is convenient. A single person can complete the basic operation process.

Technical Specifications

The rated power of the hydraulic system is ≥ 120kW. The drilling speed can be adjusted from 0 to 100 r/min. The drilling efficiency in hard rock strata is ≥ 10m/h. The maximum drilling depth is ≥ 45m. The drilling diameter is 80 - 150mm, meeting the multi-specification drilling requirements of the mine. The crawler chassis has a climbing ability of ≥ 25°, a small turning radius, and a transfer speed of ≥ 15km/h, which is 50% higher than that of the tracked Drilling Rig; the drill pipe is made of high-strength alloy steel, with an anti-fatigue strength of ≥ 850MPa, and the service life is 40% longer than that of ordinary drill pipes. The equipment is equipped with a high-pressure flushing system, with water pressure ranging from 0.8 to 1.2MPa. It effectively cools the drill bit and discharges rock debris. The protection level reaches IP54, which can withstand the dust and humid environment in the mine, has strong stability during continuous operation, and the core components have undergone 1200-hour endurance tests.

Product features

Crawler type: Convenient for movement, fast transfer, no need for hoisting, high through rate in complex mine road conditions;

Powerful drilling: Hydraulic drive + intelligent pressure regulation, high efficiency in hard rock, the occurrence rate of stuck drill decreases by 60%;

Collaborative compatibility: Smooth connection with Hydraulic Mining Drilling Rig, suitable for multi-process operations in the mine.

Tips

1.When drilling in hard rock, adjust the drilling speed to 60 - 80r/min, and cooperate with high-pressure flushing to improve the crushing efficiency;

2.Before transfer, check the tire pressure and the connection of the drill pipe to avoid loosening in bumpy mine sections;

3.When cooperating with Hydraulic Mining Drilling Rig, plan the drilling area in advance to shorten the equipment connection distance. Application scenario

In the construction of blasting holes in metal mines, efficient drilling provides precise hole positions for blasting operations, increasing the amount of ore extracted; in non-metallic mining exploration projects, a 45m drilling depth can obtain deep geological data, providing a basis for mining planning; in slope support engineering of mines, precise drilling for installing anchor rods ensures mining safety; in open-pit mining stripping operations, the wheel-type mobile design enables quick switching of operation areas, and it collaborates with the Hydraulic Mining Drilling Rig to complete the crushing and removal of surface rocks.

Customer Benefits

By choosing the ANNENG CYLJ-45A drilling machine, the wheel-type mobile design reduces the transfer time by 70%, and in a certain iron mine project, the daily operation area has increased by 3; the powerful drilling characteristics increase the daily drilling length of a single machine to 120m, and the project duration is shortened by 25%. The intelligent pressure regulation system reduces drill bit wear and saves over 60,000 yuan in spare parts annually; the high compatibility with the Hydraulic Mining Drilling Rig enables an overall improvement in mine operation efficiency by 30%, and the equipment utilization rate reaches 88%.

Customer Reviews and Recommendations

Mine Engineering Manager Li said: "The previous drilling machine had to rely on cranes for relocation, and it couldn't move even one place in half a day. After switching to the CYLJ-45A, I could drive it myself. Hard rock drilling can reach 10 meters per hour, which is much faster than ordinary Drilling Rigs." Engineer Zhang, an exploration engineer, commented: "This Hydraulic Mining Drilling Rig has strong adaptability, low drilling accuracy error, thorough high-pressure flushing system for debris removal, and significantly fewer instances of stuck drill bits compared to before. It is also stable in the mine dust environment." Mr. Liu, the equipment purchaser, recommended: "Among many wheel-type drilling machines, this one has the most balanced power and flexibility. There is no need to spend extra money on finding cranes for relocation. It has been purchased in batches for three mine projects and the feedback has been very good."
