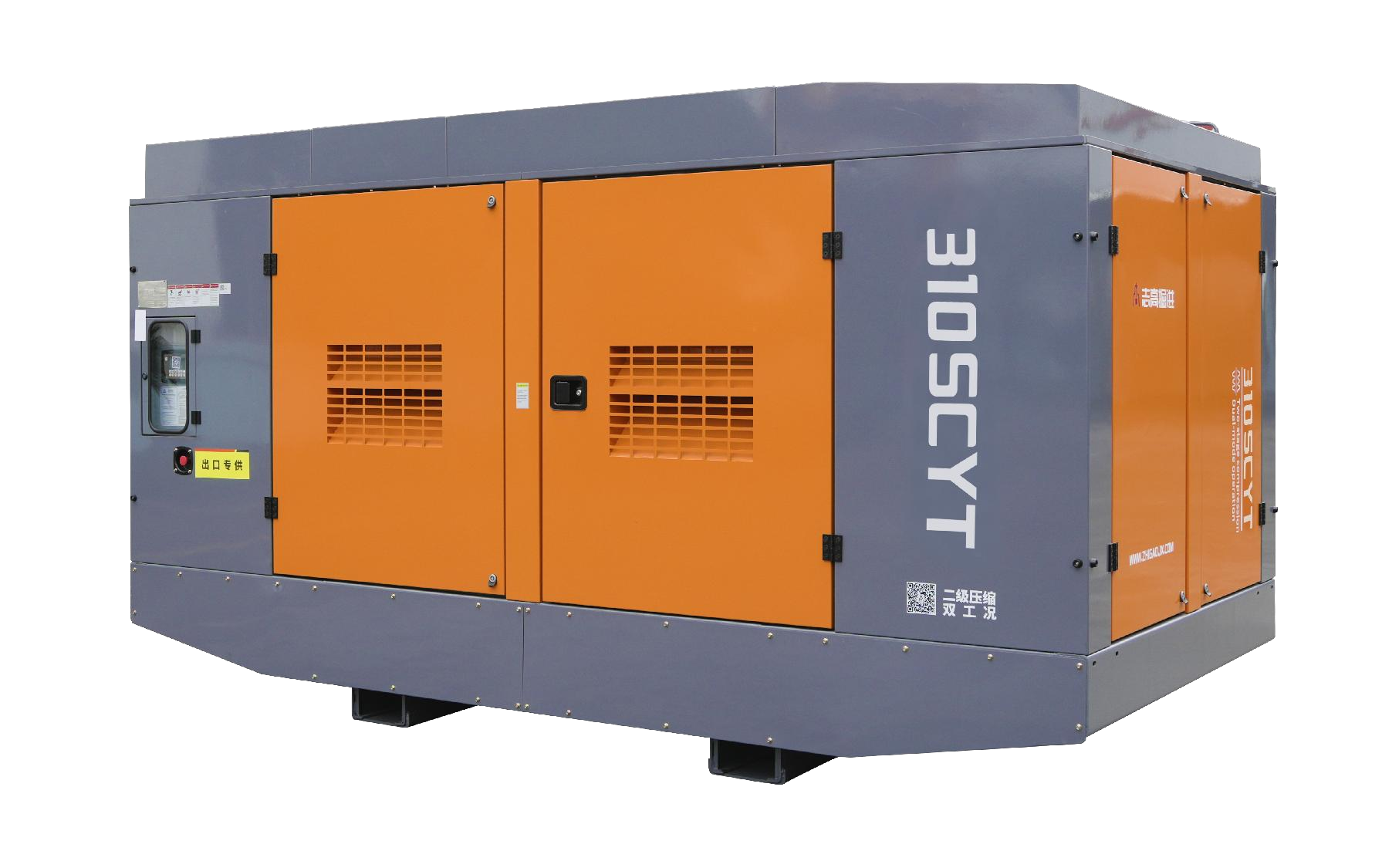

Durable Diesel-Powered Screw Compressors for Mining

Durable Diesel-Powered Screw Compressors for Mining

Name: Durable Diesel-Powered Screw Compressors for Mining
Brand: Jiangsu Aneng Drilling Equipment Technology Co., Ltd.
Rating: 4.7 (37 reviews)

Get Latest Price

Payment Type:	L/C,D/P,D/A
Incoterm:	FOB,CFR,CIF,EXW
Min. Order:	1 Set/Sets
Transportation:	Ocean,Land,Air,Express
Port:	SHANGHAI,QINGDAO,LIANYUNGANG

Contact Now

Product Description

Product Attributes

Model No.: 310SCYT/310SCYT-G

Status: New

Applicable Industry: Hotels, Food &Amp; Beverage Factory, Construction Works, Garment Shops, Building Material Shops, Farms, Energy &Amp; Mining, Restaurant, Food &Amp; Beverage Shops, Home Use, Machinery Repair Shops, Manufacturing Plant, Food Shop, Retail, Other, Advertising Company, Printing Shops

Out-of-warranty Service: Online Support

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Core Components: Plc, Engine, Bearing, Gearbox, Pressure Vessel, Motor, Pump, Gear

Place Of Origin: China

Packaging & Delivery

Selling Units

Set/Sets

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Durable solution for mining diesel screw compressors: Solving the dilemma of high energy consumption

Industry pain points: In mining, Drilling Rigs, modified drilling and digging machines, and drilling and cracking equipment have a large demand for compressed air, but traditional electric compressors have unstable power supply and poor mobility in remote mining areas, and diesel-driven equipment often shuts down due to high temperature and excessive fuel consumption, resulting in soaring costs.

Your troubles: Is the construction period delayed due to frequent maintenance of the compressor? Is the cost increased by configuring an Air Compressor for each device? Is the equipment going on strike in a severe cold of -20℃ or a hot environment of 50℃?

Our solution: This diesel-driven screw compressor adopts a three-stage cooling system and is equipped with a German MAN diesel engine. It can stably output compressed air with a pressure of 25bar and a flow rate of 18m³/min in an environment of -30℃ to 55℃. Its dual-mode drive technology can supply air to drilling rigs, modified drilling rigs, and drilling and cracking machines at the same time, and achieves dynamic load matching through an intelligent pressure regulating valve, saving 27% energy compared with similar products.

Actual effect: A test at a copper mine in Qinghai showed that the equipment ran continuously for 720 hours without any faults. When supplying gas to three drilling and cracking machines simultaneously, the fuel consumption was only 0.32L/m³, which was 19% lower than the industry average.

Product features:

All-terrain adaptability: IP67 protection level fuselage, can be immersed in 1 meter deep mud and water

Intelligent warning: built-in 200+ fault models, warning of potential problems 12 hours in advance

Modular design: core components support fast replacement, and maintenance time is shortened to 45 minutes

Tips:

① Diesel engine injection volume needs to be adjusted when the altitude exceeds 3000 meters

② Check the oil-gas separator pressure difference every month, and replace it immediately if it exceeds 0.15bar

③ It is recommended to install a -40℃ start-up preheating device in severe cold environments

Traditional Drilling Rigs have difficulty climbing steep slopes? WG-90A Excavator Converted Drilling Rigs transform excavators into drilling rigs, accurately drilling 90mm 3-meter blasting holes, and efficiently assisting subsequent Drilling And Splitting Machines construction.
